Wrist Watch Parts: Complete Anatomy of the Exterior, Dial, and Movement

Quick Comparison: Primary Wrist Watch Parts by System

Exterior Watch Parts

The exterior parts absorb daily bumps, seal out sweat and water, and secure the watch to your wrist.

The Watch Case (Mid-Case)

The mid-case is the central body machined from a solid block of metal, carbon, or resin. Most quality steel watches use 316L surgical-grade stainless steel, while brands like Rolex use 904L steel for higher corrosion resistance against salt water. Inside the case, a plastic or brass ring secured by case clamps and screws stops the movement from rattling. Cheap watches use thin plastic spacers; higher-grade watches use machined brass or titanium rings that also act as a Faraday cage against magnetic fields.

Caseback

The bottom cover of the watch sits directly against your skin. Watchmakers use four main attachment designs:

1. Snap-on Caseback: Pressed into place using a friction lip. It offers minimal water resistance (30m to 50m) and requires a case knife to pop open.
2. Screw-down Caseback: It features machined threads along the outer edge and notches for a wrench or rubber friction ball. This design compresses a flat rubber O-ring evenly for 100m to 1,000m+ water resistance.
3. Screwed-down Caseback: Held down by 4 to 8 tiny perimeter screws. While convenient, uneven screw torque can pinch the gasket and cause leaks.
4. Exhibition (Display) Caseback: Replaces solid metal with a flat sapphire or mineral window so you can see the mechanical rotor and bridges.

Watch Crystal

The crystal covers the dial face. Its thickness (1.2mm to 3.5mm+ on dive watches) and shape (flat, single-dome, or double-dome) determine how the dial looks at an angle.

• Acrylic (Plexiglass / Hesalite): Lightweight plastic that bends upon impact instead of shattering. It scratches easily, but you can buff out marks at home in two minutes.
• Mineral Glass: Standard silica glass heat-treated or chemically hardened (such as Seiko Hardlex). It resists scratches better than plastic (approx. 500 to 700 Vickers hardness) but shatters or chips if hit against a doorframe.
• Synthetic Sapphire: Lab-grown aluminum oxide crystallized at extreme heat. Measuring 9 on the Mohs scale (approx. 2,000 Vickers), only diamond or silicon carbide can scratch it. Because sapphire causes heavy glare, brands apply Anti-Reflective (AR) coating to the underside (or both sides) of the glass.

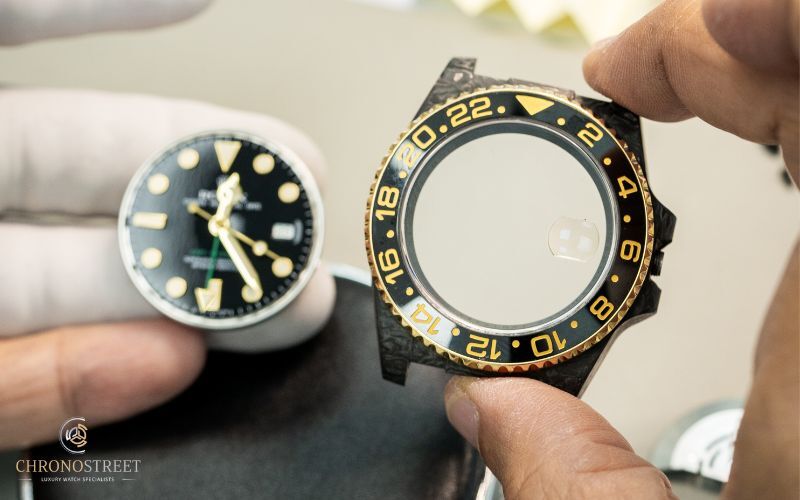

The Bezel and Bezel Insert

The bezel is the metal ring surrounding the crystal. Fixed bezels are Press-fitted onto the mid-case to clamp the crystal gasket in place. Unidirectional rotating bezels are found on dive watches meeting ISO 6425 standards. Underneath the bezel is a thin metal click-spring or ball-bearing plunger system with 60 or 120 teeth. It only turns counter-clockwise so an accidental bump makes your dive time look longer, never shorter.

Bidirectional bezels turn both ways for GMT time-zone tracking or slide-rule pilot calculations. Bezel Insert means the numbered track glued or snapped inside the bezel ring, made from anodized aluminum (develops vintage fade over time), zirconium oxide ceramic (scratch-proof), or sapphire.

Read: Dive Bezel Won’t Rotate: Causes & How to Fix it

Crown, Stem, and Crown Tube

The crown is the grooved knob on the side of the case usually at 3 o’clock, or 4 o’clock to prevent wrist bite.

• Winding Stem: A threaded steel shaft connecting the crown on the outside to the movement’s keyless works on the inside. Watchmakers trim the stem to exact millimeter length for each case.
• Push-Pull vs. Screw-Down: A push-pull crown relies on tiny rubber O-rings inside the crown tube for water resistance. A screw-down crown threads onto the case tube, decoupling from the winding stem via an internal spring so you do not wind the movement while screwing it shut.
• Crown Guards: Raised metal shoulders flanking the crown on sport watches to prevent lateral impacts from snapping the stem.

Lugs, Lug Holes, and Spring Bars

Lugs are the four metal horns extending from the top and bottom of the case. Two measurements are important when buying straps: lug width, which is the gap between lugs, typically 18mm, 20mm, or 22mm, and lug-to-lug length, which is the total vertical distance across the wrist, which dictates whether a watch overhangs.

There are drilled vs. blind lug holes. Drilled lugs have a tiny pinhole going all the way through the outside of the lug, letting you push a paperclip in to swap straps in seconds. Blind lugs hide the holes on the inside wall. Spring bars are telescoping stainless steel tubes containing a small coil spring and double-flanged tips, 1.5mm standard thickness; 1.8mm to 2.5mm for heavy-duty dive watches.

Display Assembly Parts

Once you look past the crystal, every part you see belongs to the display assembly. Here are the watch parts in this category:

The Dial or Watch Face

The dial is a thin brass, silver, or carbon disc sitting directly over the movement.

• Dial Feet: Two tiny copper or brass pins soldered to the back of the dial. They slot into matching holes on the movement and lock in place with side tension screws. When a watch drops on a hard floor, snapped dial feet are the most common invisible damage.
• Chapter Ring (Rehaut): The angled or flat inner ring framing the outer edge of the dial, printed with minute ticks or a tachymeter scale.
• Indices (Hour Markers): Either printed directly onto the dial with pad-printing stamps (painted indices) or stamped from brass/gold with tiny feet riveted through the dial plate (applied indices).
• Sub-dials (Registers): Recessed smaller dials used for chronographs (stopwatches), small seconds, or power reserve gauges.
• Lume (Luminescence): Modern watches use non-radioactive strontium aluminate pigment called Swiss Super-LumiNova or gas-filled borosilicate glass tubes (tritium tubes / GTLS) that glow continuously for 12 to 25 years without needing light exposure.

Watch Hands

Hands press onto concentric posts rising through the center hole of the dial:

1. Hour Hand: Shortest and widest; presses onto the wide hour wheel pipe at the base.
2. Minute Hand: Long enough to touch the minute track; presses onto the cannon pinion in the middle.
3. Seconds Hand: Thinnest hand with a counterbalance tail; presses onto the tiny fourth wheel pivot at the very top.

Hand Collet (Bushing): The tiny brass tube on the underside of each hand. Watchmakers press hands on with nylon-tipped tools; clearance between hands and the dial is often less than 0.3 millimeters.

Date Wheel and Aperture

• Date Window (Aperture): A cutout in the dial (usually at 3, 4:30, or 6 o’clock) often framed in metal. Some crystals glue a Cyclops lens (a 2.5x magnifying drop of sapphire) directly over this cutout.
• Date Indicator (Date Ring): A flat toothed ring sitting right beneath the dial, printed with numbers 1 through 31. At midnight, a date jumper finger clicks the ring forward by one tooth.

Internal Movement Parts

The movement or caliber is the engine inside the case. While quartz and mechanical watches share the dial and hands, their internal parts differ.

Mechanical & Automatic Movement

A mechanical watch runs on physical gears and springs, containing between 130 and 300+ individual components.

1. Mainplate and Bridges (The Chassis): The mainplate is the perforated brass baseplate that holds all gears on the bottom. Bridges and cocks like the balance cock, barrel bridge, and train wheel bridge screw onto the top to hold the upper gear pivots steady.
2. Keyless Works (Winding and Setting Mechanism): These are located right behind the crown stem. Parts like the sliding pinion (clutch wheel), winding pinion, setting lever, and yoke switch the crown between winding the watch and moving the hands.
3. Mainspring and Barrel (The Fuel Tank): A coiled ribbon of high-carbon alloy such as Nivaflex housed inside a toothed drum called the mainspring barrel. Winding the watch coils this spring around a central barrel arbor, storing 38 to 80 hours of energy.
4. Gear Train (Wheel Train): Transfers torque from the barrel to the escapement while multiplying rotational speed:
   1. Center Wheel: Completes one full rotation every 60 minutes (drives the minute hand via the cannon pinion).
   2. Third Wheel: Transfers motion between the center wheel and fourth wheel.
   3. Fourth Wheel: Completes one rotation every 60 seconds (drives the sweep seconds hand).
5. The Escapement (The Brake): Stops the mainspring from unwinding all at once. It includes two parts: the escape wheel (a club-toothed gear) and the pallet fork (a T-shaped lever fitted with two rectangular synthetic ruby pallet stones). The pallet fork locks and unlocks the escape wheel teeth, creating the signature “tick-tock” sound.
6. Balance Assembly (The Timekeeper): Controls the exact speed of the escapement:
   1. Balance Wheel: A weighted ring often made of Glucydur beryllium-bronze that swings back and forth 5 to 10 times per second (18,000 to 36,000 vibrations per hour / 2.5Hz to 5Hz).
   2. Hairspring (Balance Spring): A microscopic coiled spring thinner than a human hair made of Nivarox alloy or anti-magnetic silicon that pulls the balance wheel back to center on every swing.
   3. Regulator Pins / Free-Sprung Weights: Adjust the effective length or inertia of the hairspring to make the watch run faster or slower.
7. Oscillating Weight / Rotor (Automatics Only): A half-moon weighted metal sector mounted on ball bearings at the back of the movement. As your wrist moves, gravity pulls the rotor around, turning a reversing wheel system that winds the mainspring automatically.
8. Synthetic Jewels and Shock Springs: Red synthetic rubies (corundum) drilled with microscopic holes serve as frictionless bearings for spinning steel gear pivots. On the delicate balance wheel tips (balance staff), tiny lyre-shaped gold springs (Incabloc or KIF) let the jewel shift sideways during a drop so the 0.08mm steel pivot does not snap.

Also Read: Types of Watch Movements: Quartz, Automatic & more

Quartz Movement

Quartz movements replace the mainspring, balance wheel, and escapement with an electronic circuit:

• Silver-Oxide Battery (or Solar Capacitor): Supplies a 1.55V current for 2 to 5 years.
• Integrated Circuit (IC) / Coil Block: Sends electricity to a quartz crystal and translates pulses to a copper wire coil.
• Quartz Crystal Oscillator: A tiny tuning-fork-shaped piece of quartz glass inside a metal capsule. When hit with electricity, it vibrates at 32,768 Hz (2 to the 15th power).
• Lavet-Type Stepper Motor: The circuit divides 32,768 vibrations by two 15 times until it gets exactly 1 pulse per second. That pulse fires the magnetic stepper motor, jumping the seconds hand forward one tick at a time.

Strap, Bracelet, and Clasp Parts

The attachment assembly has the weight of the watch head and takes constant sweat, dirt, and flexing stress.

• End Links: The curved metal pieces connecting a metal bracelet to the watch case between the lugs. Solid end links (SELs) are milled from solid steel blocks and prevent rattle; hollow end links are folded sheet metal that can bend over time.
• Bracelet Links & Pins: Individual metal segments held together by split pins (cotter pins), pin-and-collar (tube) sleeves, or threaded screws.
• Tang Buckle (Pin Buckle): The traditional two-piece strap buckle consisting of an outer frame and a movable center tongue (tang) that pokes through sizing holes.
• Deployant Clasp (Folding Clasp): A hinged metal mechanism (single-fold or butterfly double-fold) used on bracelets and leather straps so the watch expands over your hand without unthreading the strap every day.
• Micro-Adjustment & Diver’s Extension: Inside the clasp cover sit 3 to 6 pinhole positions (or a toolless ratcheting track) allowing 2mm to 10mm of quick sizing adjustments when your wrist swells in hot weather.
• Keepers (Loops): The two leather or rubber rings on a two-piece strap, one fixed keeper sewn near the buckle, and one floating keeper that holds down the loose strap tail.

Also Read: Types of Watch Straps and Bracelets

Hidden Sealing Parts: How Gaskets Keep a Watch Alive

Most people overlook gaskets, yet failed gaskets cause 90% of fatal watch damage. A water-resistant watch relies on three main seal locations:

1. Crystal Gasket: A rigid nylon or Teflon (PTFE) L-shaped ring pressed between the case wall and the outer edge of the sapphire crystal.
2. Caseback Gasket: A compressible black rubber O-ring lubricated with silicone grease, sitting in a machined channel under the caseback.
3. Crown Gasket: Tiny thick rubber rings inside the crown head and stem tube that experience heavy friction every time you pull the crown out to set the time.
4. Helium Escape Valve (HEV): Found on saturation diving watches (rated 300m+). A spring-loaded one-way valve built into the side of the case that vents trapped helium gas molecules during decompression so internal pressure does not blow the crystal out of the case.

Sources & References

• FH Official Dictionary of Horology
• NIST Time and Frequency Division Research Paper
• ISO 22810 Water-Resistant Watches Standard
• ETA 2801-2 to 2836-2 Official Factory Technical Sheet

Fact Checked by: Aiman Moner, ChronoStreet’s master watchmaker
