Gold Watch Case Dent Repair: Welding vs Polishing

Watch Case Repair: Polishing vs. Laser Welding

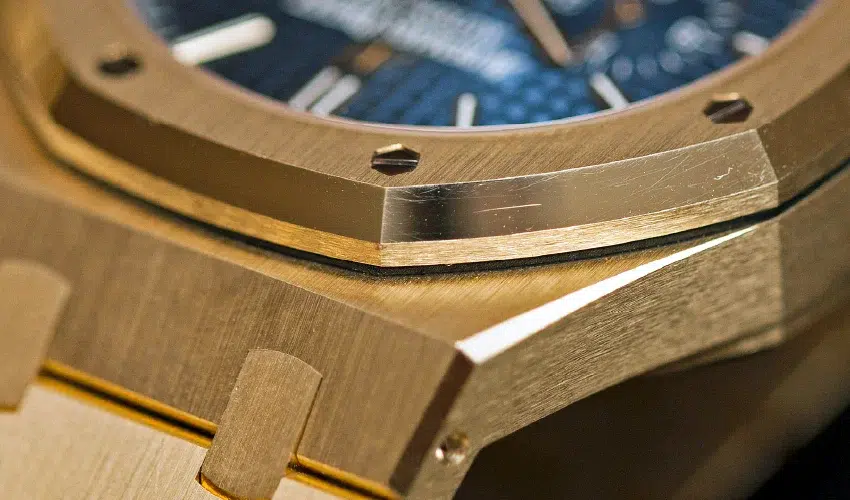

Why Gold Luxury Watches Dent and Scratch Easily

Gold alloys used in watchmaking, such as 18k (75% gold) and 14k (58.5% gold), are much softer than the 316L or 904L stainless steel used on sports watches. The same knock that leaves a faint scuff on a steel case can leave a real crater in gold. Rose gold and Everose are copper-rich and a little harder than yellow gold, but they still mark quickly.

White gold usually wears a thin rhodium plating, so damage can show up as a dull grey patch where the plating is gone, not just as a dent. The softness is important for repair because gold is a finite part of the watch’s value. Every gram you grunt away is gold you paid for and will never get back, says Aiman Moner, our watch repair expert at ChronoStreet.

How Polishing Affects a Watch Case Over Time

Luxury watch polishing is subtractive. A watchmaker works the case against progressively finer abrasives and polishing compounds until the surrounding metal is level with the bottom of the bent. Nothing is added; the damage is removed along with the good metal around it. Done well, on light damage, it is invisible and completely appropriate. Done repeatedly or aggressively, it causes problems:

• Rounded Lugs and Soft Bevels: The lines between a brushed top surface and a polished side is the first thing to disappear.
• Lost Case Thickness: Thin case backs and slim dress-watch cases have very little material to spare. Too much removal can affect the back seats and seals.
• Blurred Engraving: Hallmarks, assay marks, reference, and serial numbers between the lugs can fade or vanish.
• Weight Loss: A heavy refinish on a gold case removes real gold. Collectors often weigh vintage pieces for exactly this reason.
• Value Loss: In the collector market, a sharp unpolished case usually beats a shiny over-polished one.

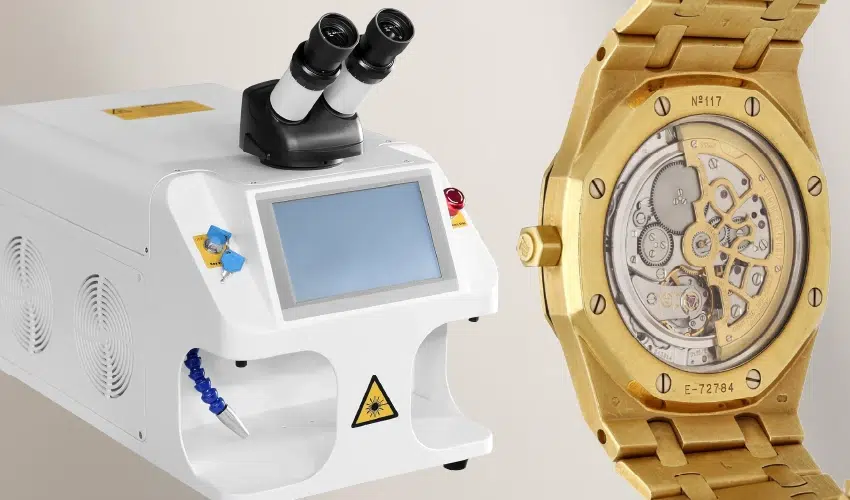

How Laser Welding Works to Repair and Restore Watch Cases

Laser welding is additive. The watchmarker places gold filler of the same alloy and color against the damaged spot and fires short, focused laser pulses. These are typically a pulsed Nd:YAG or fiber source with a spot size around 0.1 mm to 1.0 mm to fuse the filler into the case. The heat-affected zone is tiny and very localized, so the metal a few millimeters away stays close to room temperature.

According to Aiman Moner, welding is only half the job. Afterwards, the added gold is filed, shaped, and refinished to rebuild the original contour and the correct mix of polished and brushed surfaces. Good work is hard to spot without a loupe.

The Benefits of Laser Welding

• Rebuilding a lug tip or corner that a polish could never restore.
• Filling a deep gouge without thinning the whole case side.
• Repairing cracks, worn threads, and pin holes.
• Restoring case geometry and weight instead of shrinking them.
• Protecting hallmarks and engravings on the areas around the damage.

The Limitations and Risks of Laser Welding

• On light scratches, it is overkill and adds risk for no gain.
• Right next to a fragile enamel or lacquer dial, unless the movement and dial are fully removed first.
• On thin plated cases, such as gold-filled, gold-capped, or gold-plated, where the gold layer is micron thick and heat can blister or burn through it.
• On watches where collectors value untouched wear, such as a rare vintage reference with an honest patina. The same logic applies to re-luming hands without affecting the patina.

Welding vs Polishing: Side by Side

What It Costs and How Long It Takes

Prices vary widely by brand, case material, such as stainless steel vs 18k gold, and the exact amount of restoration required. So, always obtain a written quotation accompanied by macro photography before commissioning work. As a benchmark for premium independent luxury watch specialists in the UAE, expect the following standard market rates and turnaround time.

Brand service centers often price differently. Some will refinish but will not laser weld, and may instead quote a replacement case, which on a gold watch can cost more than the repair by a wide margin. For example, Rolex refinishes the case and bracelet on request as part of its service procedure, which means you can decline it. If you are not sure how your own case is built, our guide on what Rolex Oyster means explains the three-part case design that makes these repairs possible.

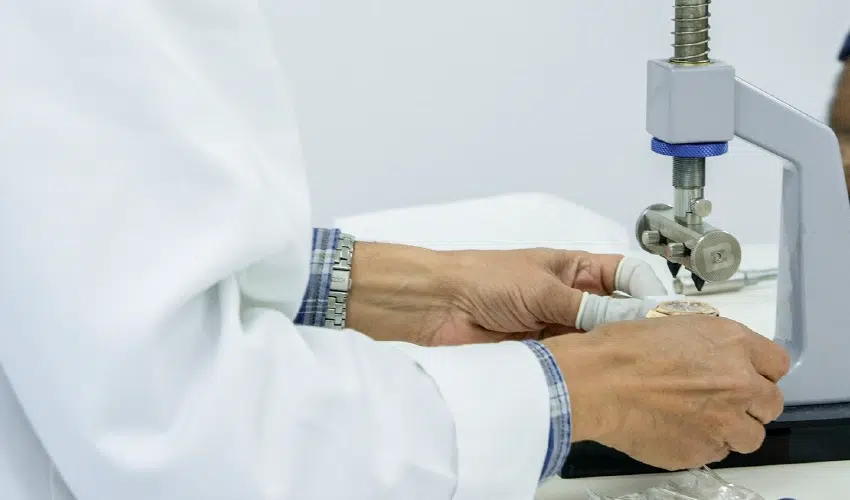

The Gold Watch Case Repair Process

1. Assessment Under Magnification: Depth of the dent, remaining case thickness, and where the damage is relative to hallmarks and gaskets.
2. Full Teardown: Movement, dial, hands, crystal, crown, tube, bezel, and all gaskets come out. Nothing heat-sensitive stays in the case.
3. Alloy Match: Filler must match the karat and the color; 18k yellow, rose/Everose, or white gold, or the repair will show as a shade different after polishing.
4. Welding in Small Pulses: Overlapping spots build the material up slightly proud of the surface.
5. Shaping: Files and stones bring the added metal back to the original line, with edges taped and protected.
6. Refinishing: Polished surfaces are brought up separately from brushed or satin surfaces, and the transition is re-cut.
7. Rhodium Re-Plating: It is done for white gold because working the surface strips the plating.
8. Reassembly: Reassemble, new gaskets, pressure test, then timing regulation if the movement was serviced.

Watch Case Restoration: Define Your Goals Before You Refinish

Before you choose a method, decide what you are protecting:

• Protecting Wearability: You wear the watch daily and want it to look good. A careful refinish is fine and cheaper. Don’t overthink it.
• Protecting Resale Value on a Modern Gold Watch: Buyers want sharp, clean cases. Welding deep damage, then a conservative refinish, usually returns more than it costs.
• Protecting Collector Value on a Vintage Reference: Here, originality can beat the condition. A dented but untouched case with crisp hallmarks may be worth more than a perfectly restored one. Ask a specialist dealer before you authorize any work.
• Protecting Gold Content on a Heavy Case: If the watch is close to scrap-value territory, aggressive polishing literally reduces what it is worth by the gram.

One More Practical Point: Disclose the repair when you sell. Laser welding is detectable under a loupe by an experienced eye, and undisclosed case work damages trust and price far more than the repair itself does.

Questions to Ask the Watchmaker

• Do you laser weld in-house, or send it out?
• What alloy and karat filler will you use, and does it match my case color?
• Will the movement and dial be removed before any heat is applied?
• Can you preserve the hallmarks and the engraving between the lugs?
• Will the brushed and polished surfaces be restored separately?
• Will the watch be pressure tested, and will gaskets be replaced?
• Can I see before-and-after photos of similar gold cases you have repaired?
• Can you send photos mid-job before final polishing?

Frequently Asked Questions (FAQs)

Can every dent in a gold watch be removed?

Almost every dent can be repaired, but not every repair is worth doing. Very thin cases, plated cases and rare vintage pieces are the common exceptions.

Does laser welding damage the watch movement?

Not when the case is fully stripped first. The heat zone is tiny and localized, but the movement, dial, crystal and gaskets should still be removed before any pulse is fired.

Will the repaired area be a different color?

Not if the filler alloy matches the case. Mismatched karat or color shows up after polishing, especially on rose gold.

Does polishing remove much gold?

A light refinish removes very little. Repeated heavy refinishing removes a measurable amount of metal and rounds the case edges permanently.

Is my watch still water resistant after a case repair?

Only after new gaskets and a pressure test. Always ask for the test to be included and stated on the invoice.

How long does a laser-welded repair last?

Indefinitely. The added gold is fused to the case, not glued or filled, so it wears the same way as the rest of the metal.
